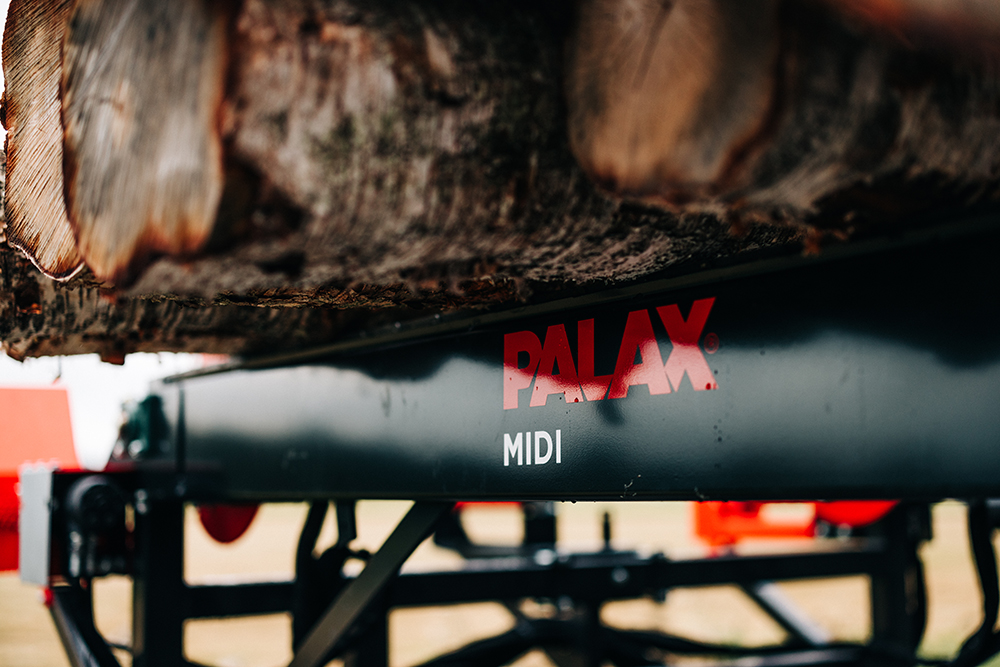

Palax Midi

Scalable and chain-operated in-feed table for large and short logs

Palax Midi is a strong and robust in-feed table, which has the advantage of reliable chain feed and hydraulic control that increases ease of use. It is an excellent choice in terms of flexibility: it is suits for handling large logs, from 2.4 to 5 meters in size, as well as short logs under 2 meters.

Ease of joystick control

The in-feed table is a necessary accessory for effortless and efficient firewood production: Palax Midi is suitable for all of our firewood processors. Handling and straightening the logs is effortless with the joystick, which can be used to drive the chains both forward and backward. Finally, the disc dispenser of the deck feeds one log at a time onto the in-feed conveyor of the firewood processor towards the cutting.

Accessories available for the Palax Midi Log Deck

For handling short logs, we recommend an additional third chain beam to be placed in the middle of the table (two chain beams on the edges come standard). We also recommend an additional in-feed roller, which can be purchased separately, for the additional chain beam, as the roller greatly facilitates the feeding of logs to the firewood processor.

Technical information

  • Capacity 8 m³
  • Width 1.7 m – 2.3 m
  • Chain beams 3 m
  • Weight 450 kg

User manuals

See also

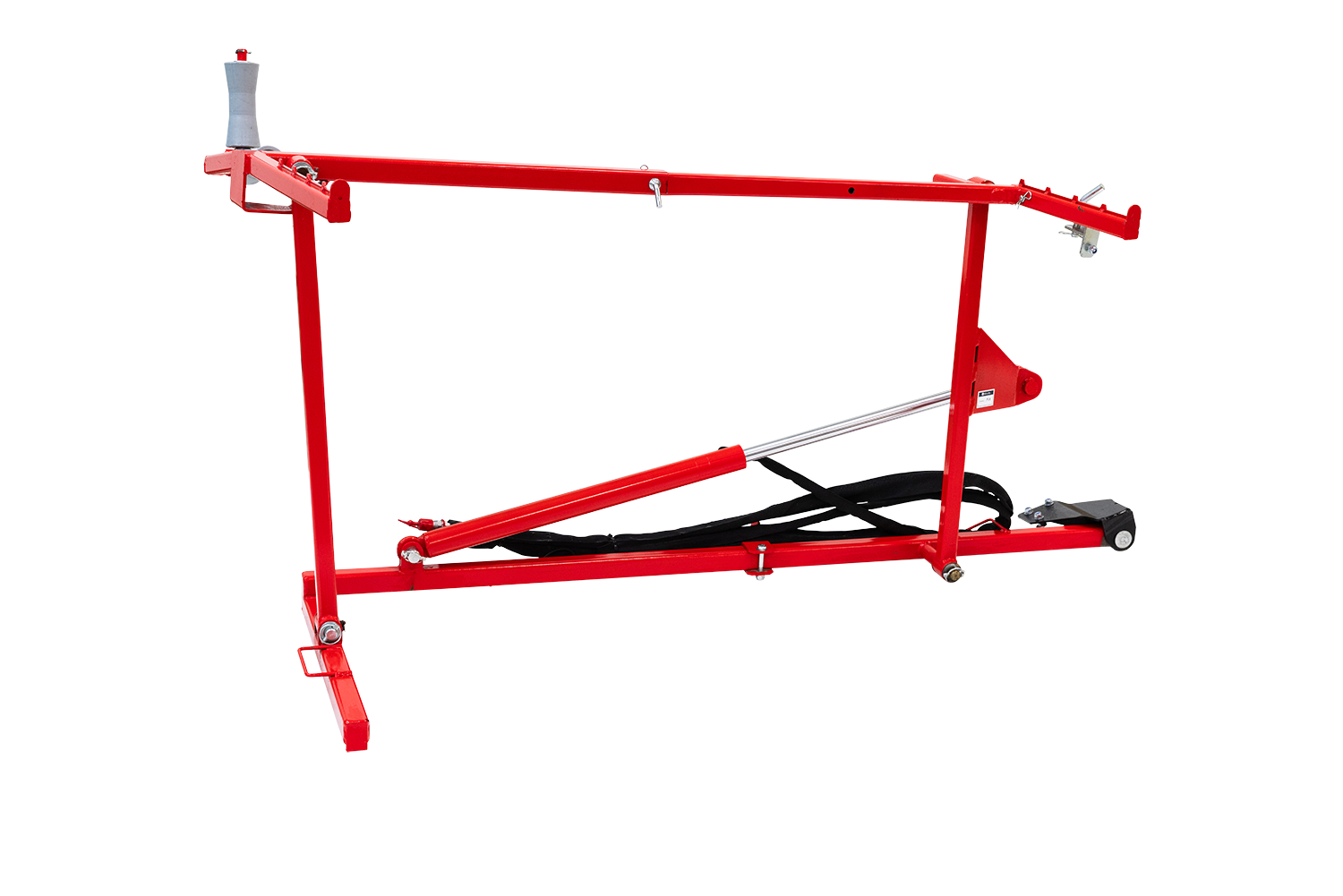

Palax Lifter

The hydraulic log lifter lifts the logs from the ground one at a time to the correct height for the firewood processor.

Palax Deck 2.0

The right choice for a light log deck from where the logs can be fed by hand from the working height. It is well suited for contracting, as the log rack can handle large quantities of logs, up to six cubic meters, and is easy to move.

Palax Mega

Our largest in-feed table, Palax Mega, is an excellent choice especially for large logs, from 2.5 meters up to 5 meters. The log deck can handle 12 cubic meters of wood, so it is best suited for feeding large quantities of logs.
